C# 최단거리 알고리즘(최소신장트리 MST)

최소신장트리 MST 크루스칼로 구현

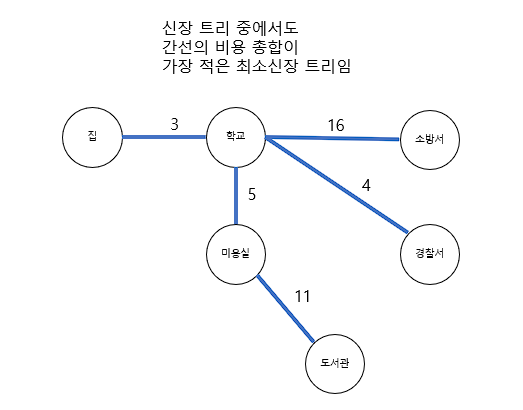

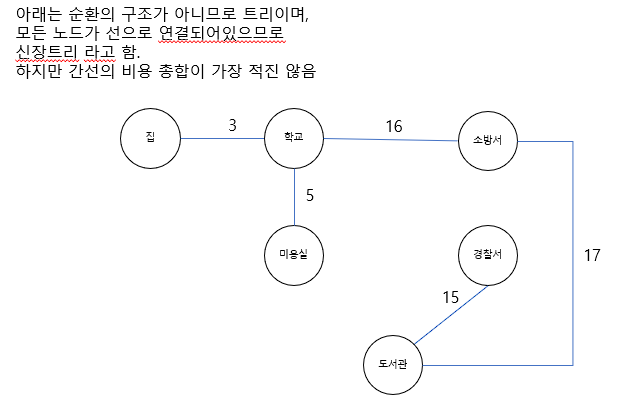

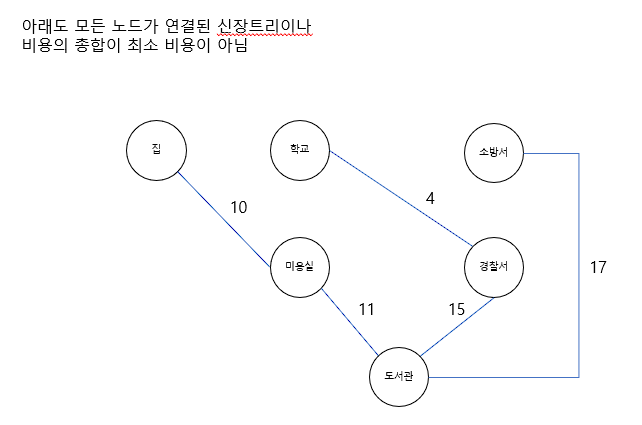

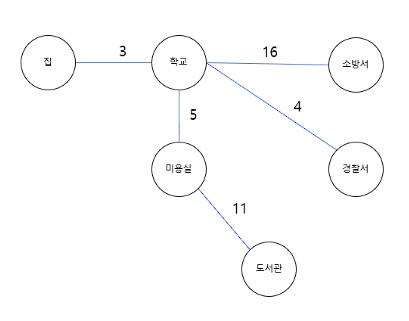

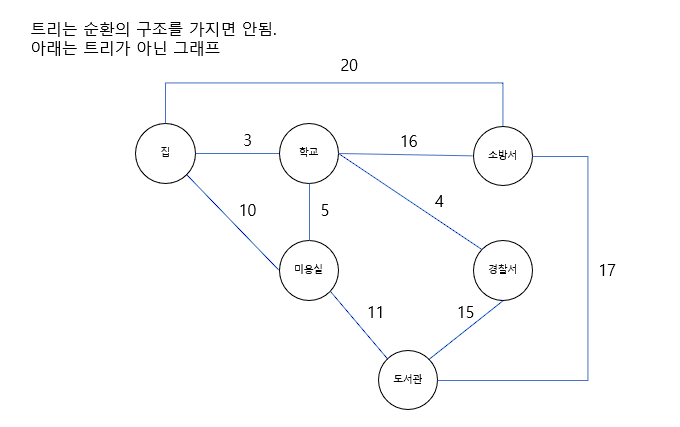

최단거리로 가기위해 최소 길이로 해둔게 최소 신장트리

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Networking.Types;

public class Node
{
    public string name;
    public Node(string name)
    {
        this.name = name;
    }
}

public class Edge
{
    public Node sNode;
    public Node eNode;
    public int cost;

    public Edge(Node sNode, Node eNode, int cost)
    {
        this.sNode = sNode;
        this.eNode = eNode;
        this.cost = cost;
    }
}

public class Graph
{
    public List<Node> nodeList;
    public List<Edge> edgeList;
    public Dictionary<Node, bool> hasNodeChecDic;

    public Graph()
    {
        nodeList = new List<Node>();
        edgeList = new List<Edge>();
        hasNodeChecDic = new Dictionary<Node, bool>();
    }

    public void AddEdge(Node sNode, Node eNode, int cost)
    {
        TryAddNode(sNode);
        TryAddNode(eNode);

        edgeList.Add(new Edge(sNode, eNode, cost));
    }

    bool TryAddNode(Node node)
    {
        if (hasNodeChecDic.ContainsKey(node) == false)
        {
            hasNodeChecDic[node] = true;
            nodeList.Add(node);
            return true;
        }
        return false;
    }
}

public class Test : MonoBehaviour
{
    Graph graph;
    Dictionary<string, Node> nodeDic;
    void Start()
    {
        graph = new Graph();
        nodeDic = new Dictionary<string, Node>();
        nodeDic.Add("집", new Node("집"));
        nodeDic.Add("학교", new Node("학교"));
        nodeDic.Add("미용실", new Node("미용실"));
        nodeDic.Add("도서관", new Node("도서관"));
        nodeDic.Add("경찰서", new Node("경찰서"));
        nodeDic.Add("소방서", new Node("소방서"));

        graph.AddEdge(nodeDic["집"], nodeDic["학교"], 3);
        graph.AddEdge(nodeDic["집"], nodeDic["미용실"], 10);
        graph.AddEdge(nodeDic["집"], nodeDic["소방서"], 20);

        graph.AddEdge(nodeDic["학교"], nodeDic["미용실"], 5);
        graph.AddEdge(nodeDic["학교"], nodeDic["경찰서"], 4);
        graph.AddEdge(nodeDic["학교"], nodeDic["소방서"], 16);

        graph.AddEdge(nodeDic["미용실"], nodeDic["도서관"], 11);

        graph.AddEdge(nodeDic["도서관"], nodeDic["경찰서"], 15);
        graph.AddEdge(nodeDic["도서관"], nodeDic["소방서"], 17);


        foreach (Node node in graph.nodeList)
        {
            Debug.Log(node.name);
        }

        foreach (Edge edge in graph.edgeList)
        {
            Debug.Log(edge.sNode.name + "-----" + edge.eNode.name);
        }
    }
}





using System;
using System.Collections;
using System.Collections.Generic;
using Unity.VisualScripting.Antlr3.Runtime;
using UnityEngine;

public class Node //노드 일단 이름(키)을 저장할 곳
{
    public string name;
    public Node(string name) //생성자로 스트링을 받으면 이름을 저장
    {
        this.name = name;
    }
}

public class Edge : IComparable<Edge> //간선. 시작점과 끝점을 이러 선을 만들어줌
{
    public Node sNode; //시작점
    public Node eNode; //끝점
    public int cost;

    public Edge(Node sNode, Node eNode, int cost)//생성자로 시작점 끝점 그리고 그 사이 코스트 저장
    {
        this.sNode = sNode;
        this.eNode = eNode;
        this.cost = cost;
    }
    public int CompareTo(Edge other)
    {
        if (cost > other.cost)
            return 1;
        else if (cost < other.cost)
            return -1;

        return 0;
    }

}

public class Graph //위의 두개를 합해서 그래프로 만들기
{
    public List<Node> nodeList;
    public List<Edge> edgeList;
    public Dictionary<Node, bool> hasNodeChecDic;//중복 방지를 위해 bool이 들어감

    public Graph()//생성자로 공간할당
    {
        nodeList = new List<Node>(); //노드+
        edgeList = new List<Edge>(); //간선 +
        hasNodeChecDic = new Dictionary<Node, bool>();//중복체크
    }

    public void AddEdge(Node sNode, Node eNode, int cost)
    {
        TryAddNode(sNode);//스타트 지점 검사 및 add
        TryAddNode(eNode);//끝 지점 검사 및 add

        edgeList.Add(new Edge(sNode, eNode, cost)); //고것을 다합해 edgeList 만들기
    }

    public void AddEdge(Edge edge)
    {
        AddEdge(edge.sNode, edge.eNode, edge.cost);
    }

    bool TryAddNode(Node node)
    {
        if (hasNodeChecDic.ContainsKey(node) == false)
        {
            hasNodeChecDic[node] = true;
            nodeList.Add(node);
            return true;
        }
        return false;
    }
}


public class MST : Graph
{

    public void SetMST(Graph graph)
    {
        //크루스칼로 구현//

        //1. 원본 그래프의 간선리스트를 그대로 복사해서 가져온다.
        List<Edge> sortedList = new List<Edge>(graph.edgeList);
        //2. 정렬한다.
        sortedList.Sort();
        //3. 하나씩 꺼내서 순환구조가 아닐때만 넣는다.
        foreach (Edge curEdge in sortedList)
        {
            if (IsCycle(curEdge) == false)
                AddEdge(curEdge);
        }

        //반복
        //끝
        bool IsCycle(Edge curEdge)
        {
            //두 노드가 사전에 이미 등록된 노드면 순환.
            bool check = hasNodeChecDic.ContainsKey(curEdge.sNode) &&
                         hasNodeChecDic.ContainsKey(curEdge.eNode);

            return check;
        }

    }
}

public class Test : MonoBehaviour
{
    Graph graph;
    Dictionary<string, Node> nodeDic;
    void Start()
    {
        graph = new Graph();
        nodeDic = new Dictionary<string, Node>();
        nodeDic.Add("집", new Node("집"));
        nodeDic.Add("학교", new Node("학교"));
        nodeDic.Add("미용실", new Node("미용실"));
        nodeDic.Add("도서관", new Node("도서관"));
        nodeDic.Add("경찰서", new Node("경찰서"));
        nodeDic.Add("소방서", new Node("소방서"));

        graph.AddEdge(nodeDic["집"], nodeDic["학교"], 3);
        graph.AddEdge(nodeDic["집"], nodeDic["미용실"], 10);
        graph.AddEdge(nodeDic["집"], nodeDic["소방서"], 20);

        graph.AddEdge(nodeDic["학교"], nodeDic["미용실"], 5);
        graph.AddEdge(nodeDic["학교"], nodeDic["경찰서"], 4);
        graph.AddEdge(nodeDic["학교"], nodeDic["소방서"], 16);

        graph.AddEdge(nodeDic["미용실"], nodeDic["도서관"], 11);

        graph.AddEdge(nodeDic["도서관"], nodeDic["경찰서"], 15);
        graph.AddEdge(nodeDic["도서관"], nodeDic["소방서"], 17);


        MST mst = new MST();
        mst.SetMST(graph);

        int totalCost = 0;
        foreach (Edge edge in mst.edgeList)
        {
            Debug.Log(edge.sNode.name + "---" + edge.cost + "----" + edge.eNode.name);
            totalCost += edge.cost;
        }

        Debug.Log("총 코스트 : " + totalCost);
    }

}

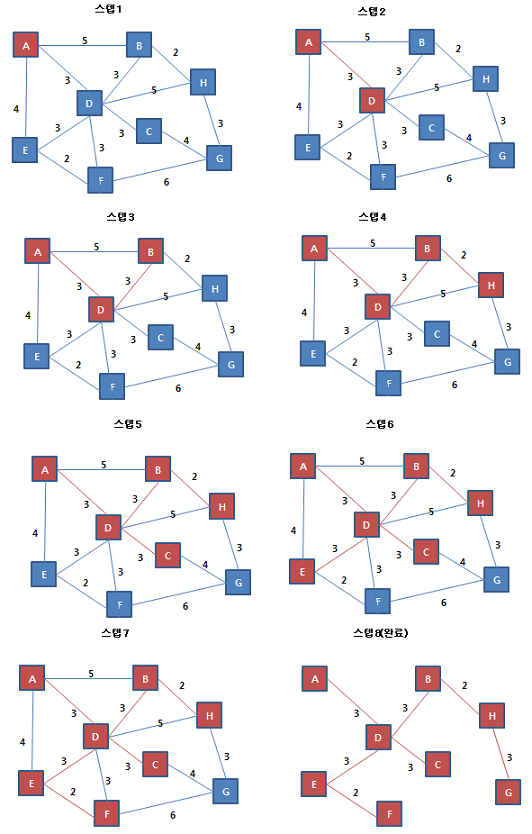

프림 알고리즘

이렇게 진행하면서 정렬 저장을 하느데 최소힙을 사용한다

using System;
using System.Collections;
using System.Collections.Generic;
using Unity.VisualScripting.Antlr3.Runtime;
using UnityEngine;
using UnityEngine.Networking.Types;


public class PriorityQueue<TElement, TPriority>
{
    private struct Node
    {
        public TElement Element;
        public TPriority Priority;
    }

    private List<Node> nodes;
    private IComparer<TPriority> comparer;

    public PriorityQueue()
    {
        this.nodes = new List<Node>();
        this.comparer = Comparer<TPriority>.Default;
    }

    public PriorityQueue(IComparer<TPriority> comparer)
    {
        this.nodes = new List<Node>();
        this.comparer = comparer;
    }

    public int Count { get { return nodes.Count; } }
    public IComparer<TPriority> Comparer { get { return comparer; } }

    public void Enqueue(TElement element, TPriority priority)
    {
        Node newNode = new Node() { Element = element, Priority = priority };

        PushHeap(newNode);
    }

    public TElement Peek()
    {
        if (nodes.Count == 0)
            throw new InvalidOperationException();

        return nodes[0].Element;
    }

    public bool TryPeek(out TElement element, out TPriority priority)
    {
        if (nodes.Count == 0)
        {
            element = default(TElement);
            priority = default(TPriority);
            return false;
        }

        element = nodes[0].Element;
        priority = nodes[0].Priority;
        return true;
    }

    public TElement Dequeue()
    {
        if (nodes.Count == 0)
            throw new InvalidOperationException();

        Node rootNode = nodes[0];
        PopHeap();
        return rootNode.Element;
    }

    public bool TryDequeue(out TElement element, out TPriority priority)
    {
        if (nodes.Count == 0)
        {
            element = default(TElement);
            priority = default(TPriority);
            return false;
        }

        Node rootNode = nodes[0];
        element = rootNode.Element;
        priority = rootNode.Priority;
        PopHeap();
        return true;
    }

    private void PushHeap(Node newNode)
    {
        nodes.Add(newNode);
        int newNodeIndex = nodes.Count - 1;
        while (newNodeIndex > 0)
        {
            int parentIndex = GetParentIndex(newNodeIndex);
            Node parentNode = nodes[parentIndex];

            if (comparer.Compare(newNode.Priority, parentNode.Priority) < 0)
            {
                nodes[newNodeIndex] = parentNode;
                newNodeIndex = parentIndex;
            }
            else
            {
                break;
            }
        }
        nodes[newNodeIndex] = newNode;
    }

    private void PopHeap()
    {
        Node lastNode = nodes[nodes.Count - 1];
        nodes.RemoveAt(nodes.Count - 1);

        int index = 0;
        while (index < nodes.Count)
        {
            int leftChildIndex = GetLeftChildIndex(index);
            int rightChildIndex = GetRightChildIndex(index);

            if (rightChildIndex < nodes.Count)
            {
                int compareIndex = comparer.Compare(nodes[leftChildIndex].Priority, nodes[rightChildIndex].Priority) < 0 ?
                leftChildIndex : rightChildIndex;

                if (comparer.Compare(nodes[compareIndex].Priority, lastNode.Priority) < 0)
                {
                    nodes[index] = nodes[compareIndex];
                    index = compareIndex;
                }
                else
                {
                    nodes[index] = lastNode;
                    break;
                }
            }
            else if (leftChildIndex < nodes.Count)
            {
                if (comparer.Compare(nodes[leftChildIndex].Priority, lastNode.Priority) < 0)
                {
                    nodes[index] = nodes[leftChildIndex];
                    index = leftChildIndex;
                }
                else
                {
                    nodes[index] = lastNode;
                    break;
                }
            }
            else
            {
                nodes[index] = lastNode;
                break;
            }
        }
    }

    private int GetParentIndex(int childIndex)
    {
        return (childIndex - 1) / 2;
    }

    private int GetLeftChildIndex(int parentIndex)
    {
        return parentIndex * 2 + 1;
    }

    private int GetRightChildIndex(int parentIndex)
    {
        return parentIndex * 2 + 2;
    }
}

public class Node
{
    public string name;
    public List<Edge> egdesInNode;
    public Node(string name)
    {
        this.name = name;
        egdesInNode= new List<Edge>();
    }
}

public class Edge : IComparable<Edge>
{
    public Node sNode;
    public Node eNode;
    public int cost;

    public Edge(Node sNode, Node eNode,int cost)
    {
        this.sNode = sNode;
        this.eNode = eNode;
        this.cost = cost;
    }

    public int CompareTo(Edge other)
    {
        if(cost > other.cost)
            return 1;
        else if(cost < other.cost)
            return -1;

        return 0;
    }
}

public class Graph
{
    public List<Node> nodeList;
    public List<Edge> edgeList;
    public Dictionary<Node, bool> hasNodeChecDic;

    public Graph()
    {
        nodeList = new List<Node>();
        edgeList = new List<Edge>();
        hasNodeChecDic = new Dictionary<Node, bool>();
    }

    public void AddEdge(Node sNode, Node eNode, int cost)
    {
        TryAddNode(sNode);
        TryAddNode(eNode);

        Edge newEdge = new Edge(sNode, eNode, cost);

        edgeList.Add(newEdge);
        sNode.egdesInNode.Add(newEdge);
    }
    public void AddEdge(Edge edge)
    {
        AddEdge(edge.sNode, edge.eNode, edge.cost);
    }

    bool TryAddNode(Node node)
    {
        if(hasNodeChecDic.ContainsKey(node) == false)
        {
            hasNodeChecDic[node] = true;
            nodeList.Add(node);
            return true;
        }
        return false;
    }
}

public interface IMSTStretegy
{
    event Func<MST> GetOwner;
    void SetMST(Graph graph);
}

public class KruskalStretegy : IMSTStretegy
{
    public event Func<MST> GetOwner;

    public void SetMST(Graph graph)
    {
        MST mst = GetOwner();
        //1. 원본 그래프의 간선리스트를 그대로 복사해서 가져온다.
        List<Edge> sortedList = new List<Edge>(graph.edgeList);
        //2. 정렬한다.
        sortedList.Sort();
        //3. 하나씩 꺼내서 순환구조가 아닐때만 넣는다.
        foreach (Edge curEdge in sortedList)
        {
            if (mst.IsCycle(curEdge) == false)
                mst.AddEdge(curEdge);
        }
    }
}

public class PrimStretegy : IMSTStretegy
{
    public event Func<MST> GetOwner;
    public void SetMST(Graph graph)
    {
        MST mst = GetOwner();

        //시작노드를 정한다.         //집 노드//
        Node startNode = graph.nodeList[0];

        //1. 우선순위 큐를 만든다.
        PriorityQueue<Edge, int> pq = new PriorityQueue<Edge, int>();
        //2. 시작노드내의 간선들을 우선순위큐에 넣는다.
        foreach(Edge edge in startNode.egdesInNode)
        {
            pq.Enqueue(edge, edge.cost);
        }

        int count = 1;  //추가된 간선의 수가 노드개수-1개 일때까지 반복
        while(count < graph.nodeList.Count)
        {
            //3. 우선순위큐에서 하나 꺼내온다 (현시점 가장 cost가 적은 간선)
            Edge curEdge = pq.Dequeue();

            //4. 순환하지 않는다면 추가한다.
            if(mst.IsCycle(curEdge) == false)
            {
                mst.AddEdge(curEdge);
                //5. 다음의 간선들도 우선순위 큐에 추가한다.
                foreach (Edge edge in curEdge.eNode.egdesInNode)
                {
                    pq.Enqueue(edge, edge.cost);
                }
                count++;
            }
        }
    }
}


public class MST : Graph
{
    IMSTStretegy stretegy;

    public MST(IMSTStretegy stretegy = null)
    {
        this.stretegy = stretegy ?? new KruskalStretegy();
        stretegy.GetOwner += () => this;
    }

    public void SetMST(Graph graph)
    {
        stretegy.SetMST(graph);
    }
    public bool IsCycle(Edge curEdge)
    {
        //두 노드가 사전에 이미 등록된 노드면 순환.
        bool check = hasNodeChecDic.ContainsKey(curEdge.sNode) &&
                     hasNodeChecDic.ContainsKey(curEdge.eNode);

        return check;
    }
}

public class Test : MonoBehaviour
{
    Graph graph;
    Dictionary<string, Node> nodeDic;
    void Start()
    {

        PriorityQueue<string,int> monstAgroPQ = new PriorityQueue<string,int>();
        monstAgroPQ.Enqueue("스켈레톤", 5);
        monstAgroPQ.Enqueue("드래곤", 15);
        monstAgroPQ.Enqueue("슬라임", 1);

        Debug.Log(monstAgroPQ.Dequeue());

        graph = new Graph();
        nodeDic = new Dictionary<string, Node>();
        nodeDic.Add("집", new Node("집"));
        nodeDic.Add("학교", new Node("학교"));
        nodeDic.Add("미용실", new Node("미용실"));
        nodeDic.Add("도서관", new Node("도서관"));
        nodeDic.Add("경찰서", new Node("경찰서"));
        nodeDic.Add("소방서", new Node("소방서"));

        graph.AddEdge(nodeDic["집"], nodeDic["학교"], 3);
        graph.AddEdge(nodeDic["집"], nodeDic["미용실"], 10);
        graph.AddEdge(nodeDic["집"], nodeDic["소방서"], 20);

        graph.AddEdge(nodeDic["학교"], nodeDic["미용실"], 5);
        graph.AddEdge(nodeDic["학교"], nodeDic["경찰서"], 4);
        graph.AddEdge(nodeDic["학교"], nodeDic["소방서"], 16);

        graph.AddEdge(nodeDic["미용실"], nodeDic["도서관"], 11);

        graph.AddEdge(nodeDic["도서관"], nodeDic["경찰서"], 15);
        graph.AddEdge(nodeDic["도서관"], nodeDic["소방서"], 17);


        MST mst = new MST();
        mst.SetMST(graph);

        int totalCost = 0;
        foreach(Edge edge in mst.edgeList)
        {
            Debug.Log(edge.sNode.name + "---"+edge.cost+"----" +edge.eNode.name);
            totalCost += edge.cost;
        }

        Debug.Log("총 코스트 : " + totalCost);
    }
}



새코드

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;


namespace TESTTOW
{
    public class Node
    {
        public string name;
        public List<Edge> edgesInNode;
        public Node(string name)
        {
            this.name = name;
            edgesInNode = new List<Edge>();
        }
    }
    public class Edge : IComparable<Edge>
    {
        public Node sNode;
        public Node eNode;
        public int cost;

        public Edge(Node sNode, Node eNode,int cost)
        {
            this.sNode = sNode;
            this.eNode = eNode;
            this.cost = cost;
        }

        public int CompareTo(Edge other)
        {
            if (cost > other.cost)
                return 1;
            else if (cost < other.cost)
                return -1;

            return 0;
        }
    }

    public class Graph
    {
        public List<Node> nodeList;
        public List<Edge> edgeList;
        public Dictionary<Node, bool> hasNodeCheckDic;

        public Graph()
        {
            nodeList = new List<Node>();
            edgeList = new List<Edge>();
            hasNodeCheckDic = new Dictionary<Node, bool>();
        }

        public void AddEdge(Node sNode, Node eNode, int cost)
        {
            TryAddNode(sNode);
            TryAddNode(eNode);

            Edge newEdge = new Edge(sNode, eNode, cost);
            edgeList.Add(newEdge);
            sNode.edgesInNode.Add(newEdge);
        }

        public bool TryAddNode(Node newNode)
        {
            if(hasNodeCheckDic.ContainsKey(newNode) == false)
            {
                hasNodeCheckDic.Add(newNode, true);
                nodeList.Add(newNode);
                return true;
            }
            return false;
        }
    }

    public class MST : Graph
    {
        public void SetKruskalMST(Graph graph)
        {
            List<Edge> sortedList = new List<Edge>(graph.edgeList);
            sortedList.Sort();
            foreach(Edge curEdge in sortedList)
            {
                if (IsCycle(curEdge) == false)
                    AddEdge(curEdge.sNode,curEdge.eNode,curEdge.cost);
            }
        }

        public void SetPrimMST(Graph graph)
        {
            //시작노드를 정한다.
            Node startNode = graph.nodeList[0];
            //1.우선순위 큐를 만든다.
            PriorityQueue<Edge, int> pq = new PriorityQueue<Edge, int>();
            foreach(Edge edge in startNode.edgesInNode)
            {
                pq.Enqueue(edge, edge.cost);
            }

            int count = 1;
            while(count <graph.nodeList.Count)
            {
                Edge curEdge = pq.Dequeue();
                if(IsCycle(curEdge) == false)
                {
                    AddEdge(curEdge.sNode,curEdge.eNode,curEdge.cost);
                    foreach(Edge edge in curEdge.eNode.edgesInNode)
                    {
                        pq.Enqueue(edge,edge.cost);
                    }
                    count++;
                }
            }
        }

        public bool IsCycle(Edge curEdge)
        {
            bool check = hasNodeCheckDic.ContainsKey(curEdge.sNode) &&
                         hasNodeCheckDic.ContainsKey(curEdge.eNode);

            return check;
        }
    }

    public class TestTwo : MonoBehaviour
    {
        Graph graph;
        Dictionary<string, Node> nodeDic;
        void Start()
        {
            graph = new Graph();
            nodeDic = new Dictionary<string, Node>();
            nodeDic.Add("집", new Node("집"));
            nodeDic.Add("학교", new Node("학교"));
            nodeDic.Add("미용실", new Node("미용실"));
            nodeDic.Add("도서관", new Node("도서관"));
            nodeDic.Add("경찰서", new Node("경찰서"));
            nodeDic.Add("소방서", new Node("소방서"));

            graph.AddEdge(nodeDic["집"], nodeDic["학교"], 3);
            graph.AddEdge(nodeDic["집"], nodeDic["미용실"], 10);
            graph.AddEdge(nodeDic["집"], nodeDic["소방서"], 20);

            graph.AddEdge(nodeDic["학교"], nodeDic["미용실"], 5);
            graph.AddEdge(nodeDic["학교"], nodeDic["경찰서"], 4);
            graph.AddEdge(nodeDic["학교"], nodeDic["소방서"], 16);

            graph.AddEdge(nodeDic["미용실"], nodeDic["도서관"], 11);

            graph.AddEdge(nodeDic["도서관"], nodeDic["경찰서"], 15);
            graph.AddEdge(nodeDic["도서관"], nodeDic["소방서"], 17);


            MST mst = new MST();
            mst.SetPrimMST(graph);
        }
    }
}
